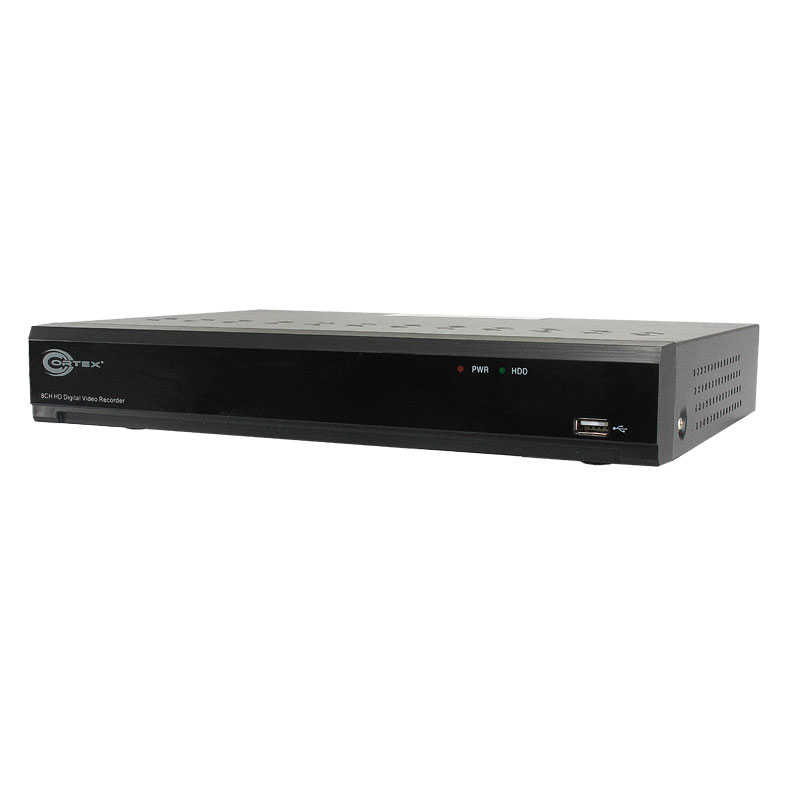

8 Channels 4K H.265 DVR for AHD | TVI | CVI | 960H | plus IP (Total 12 Channels)

8 Channels 4K H.265 DVR for AHD | TVI | CVI | 960H | plus IP (Total 12 Channels)

$442.00

TVI | 4K AHD | CVI | Legacy Analog | H.265 DVR | PLUS IP

The Cortex Medallion Series Hybrid 4K DVRs provide the best user experience for a fantastic value. Its the ideal solution for commercial or residential projects that combine legacy and future proof technologies. By engineering a DVR that provides durable, long lasting performance, Cortex has raised the bar for video surveillance once again. These models are a perfect fit for every install and give the owner 4K CCTV capability plus IP expansion.

Best H.265 / H.264 8 Channel 960H / AHD / TVI / CVI recorder for the price. This premium quality Medallion AHD recorder provide users with Analog video 8CH inputs / VGA and HDMI ouput and 8ch 960H / AHD / TVI / CVI composite video input. Features a 1 / 4 / 6 / 8 / 9 / S.E.Q. . split screen display and multiplex operation live display – record – playback – backup and network. This recorder provides PTZ control , mobile surveillance , continuous / manual / motion detect recording modes and more.

SKU: MT-COR-MD8 Categories: , , , , , Tags: , , , ,

Description

Main Features

  • H.265 ( H.264 IP Video Compression compatible)
  • Linux (embedded) Cortex CCTV
  • Continuous / Manual / Motion detect recording mode
  • 1SATA HDD, up to 8TB storage
  • 8 CH inputs /1CH output (RCA)
      • 4K UHD Hybrid DVR
      • Cortex 4K DVR plug & play compatible with all Medallion Series cameras.
      • Video Compression : H.265
      • Video System : NTSC / PAL
      • Operation System : Linux (embedded)
      • Analog video-input /output : 8CH inputs / VGA and HDMI output
      • IP Video : 4ch IP (over network)
      • Composite Video Input : 8ch 960H/AHD/TVI/CVI
      • Audio input /output : 8CH inputs /1CH output (RCA)
  • DISPLAY
      • Resolution :
        • 4K DVR Model:
        • Analog :8MP(15fps)
        • 5MP-Lite:20fps
        • 4MP/3MP/1080P/720P/960H (30fps)
        • IP : 5MP/4MP/3MP1080P/720P
      • Feature : 1/4/6/8/9/Sequential



    • Resolution :
      • Analog :8MP/5MP/4MP/3MP/1080P/ 720P/960H
      • IP: 4MP/3MP1080P/720P
    • Speed (frame rate)  :
      • 4K DVR Model:
      • Analog :8MP:7fps(each ch)
      • 5MP:10fps(each ch)
      • 4MP:15fps(each ch)
      • 3MP:17fps(each ch)
      • 1080P:PAL:25fps(each ch)/ NTSC:30fps(each ch)
      • IP : PAL:25fps(each ch)/ NTSC: 30fps(each ch)
    • Recording Mode : Continuous/Manual/Motion detect
    • IP-Recording Bandwidth (Maximum input Bandwidth):32-96Mbps (decreasing one Analog channel can increase 8Mbps )
    • Recording Mode: Continuous / Manual / Motion detection
    • Synchronous Playback : 8CH
    • Network Type : Lan – DHCP / and DDNS
    • HDD interface : 1 SATA HDD, up to 8TB
    • Multiplex Operation : live display – record – playback – backup and network
    • USB : 1x USB3.0 1*USB2.0(for mouse and backup/ upgrade)
    • Sensor and Alarm I/Q : 8CH inputs /1CH output
    • PTZ Control :yes (RS485)
    • Mobil Surveillance : Support IOS on iPhone and Android operation system
    • VGA/HDMI : 1024*768 / 1280*720 / 1280*1024 / 1440*900/ 1920*1080(1080P) / 2560*1440(2K) /3840*2160(4K)
    • Power Supply :DC 12V/2A
    • Dimension ( W x D x H ) :
      • 300 x 227 x 53mm
      • 11.6 x 8.93 x 2 inches
    • Working Temperature : -10°C~+55°C
    • Working Humidity : 10%~90%
