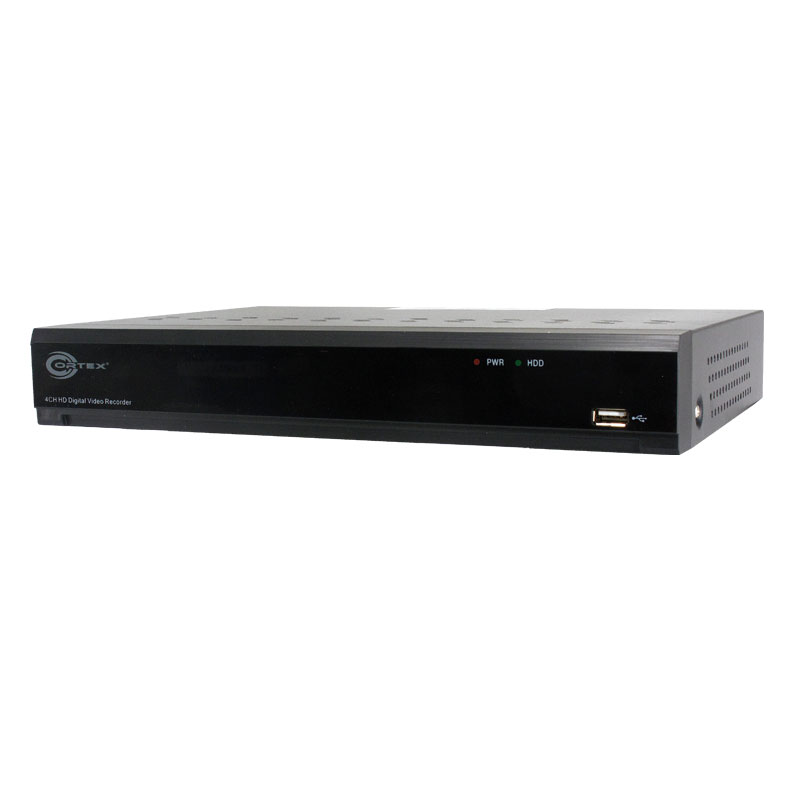

4 Channel H.265 DVR Medallion Lite AHD | TVI | CVI | 960H
$160.00
TVI | AHD | CVI | 960H | H.265 DVR | PLUS IP | 1 SATA HDD, up to 6TB
The Cortex Medallion Series Hybrid 5 in one recorder provides the best user experience for a fantastic value. Its the ideal solution for commercial or residential projects that combine legacy and future proof technologies. By engineering a DVR that provides durable, long lasting performance, Cortex has raised the bar for video surveillance once again. These models are a perfect fit for every install and give the owner fantastic capability plus IP expansion.
Best H.265 / H.264 4 Channel 960H / AHD / TVI / CVI recorder for the price. This premium quality Medallion AHD recorder provide users with Analog video 4CH inputs / VGA and HDMI output and 4ch 960H / AHD / TVI / CVI composite video input. Features a 1 / 4 / 6 /S.E.Q.. split screen display and multiplex operation live display – record – playback – backup and network. This recorder provides PTZ control, mobile surveillance, continuous/manual/motion detect recording modes and more.
Main Features
- H.265/H.264 Video Compression
- Linux (embedded) Operating System
- Continuous/Manual/Motion detect recording mode
- 1 SATA HDD, up to 6TB storage
- 4CH inputs / 1CH output (RCA)
-
- Video Compression : H.265 / H.264
- Video System : NTSC / PAL
- Operation System : Linux (embedded)
- Analog video-input /output : 4CH inputs / VGA and HDMI output
- IP Video : 2ch IP (over network)
- Composite Video Input : Up to 6ch (Analog video + IP video)
- Audio input /output : 4CH inputs /1CH output (RCA)
DISPLAY
-
- Resolution :
- 5MP- Lite (20fps)
- 4MP- Lite (30fps)
- 3MP:18fps
- 1080P/720P/960H:30fps
- IP : 5MP/4MP/3MP1080P/720P
- Feature : 1/4/6/S.E.Q..
- Resolution :
RECORD
- Resolution :
- Analog : 5MP-Lite/4MP-Lite/3MP/1080P/ 720P/960H
- P : 5MP/4MP/3MP1080P/720P
- Speed :
- 4K Model:
- Analog :8MP:(15fps)
- 5MP:10fps(20fps)
- 4MP/3MP/1080P/ 720P/960H (:(30fps)
- IP : 4MP/3MP1080P/720P
- Speed :
- Analog : 5MP-Lite:12fps (each ch)
- 4MP/3MP(30fps)
- 4MP-Lite:14fps(each ch)- 3MP:9fps(each ch) 1080P:13fps(each ch) 720P:PAL:25fps(each ch)/ NTSC::30fps(each ch)
- IP : PAL:25fps(each ch)/NTSC: 30fps(each ch)
- Recording Mode : Continuous/Manual/Motion detection
- IP-Recording Bandwidth (Maximum input Bandwidth): 24Mbps( default is 8Mbps, decreasing one Analog channel can increase 4Mbps )
- Synchronous Playback : 4CH
- Network Type : Lan - DHCP / and DDNS
- HDD interface : 1 SATA HDD, up to 6TB
- Multiplex Operation : live display - record - playback - backup and network
- USB : 2 x USB(for mouse and backup/upgrade)
- Sensor and Alarm I/Q :N/A
- PTZ Control :yes (RS485)
- Mobil Surveillance : Support IOS on iPhone and Android operation system
- VGA/HDMI : 1024*768 / 1280*720 / 1280*1024 / 1440*900/ 1920*1080(1080P) / 2560*1440(2K) /3840*2160(4K)
- Power Supply :DC 12V/2A
- Dimension ( W x D x H ) :
- 300 x 227 x 53mm
- 11.6 x 8.93 x 2 inches
- Working Temperature : -10°C~+55°C
- Working Humidity : 10%~90%
-
