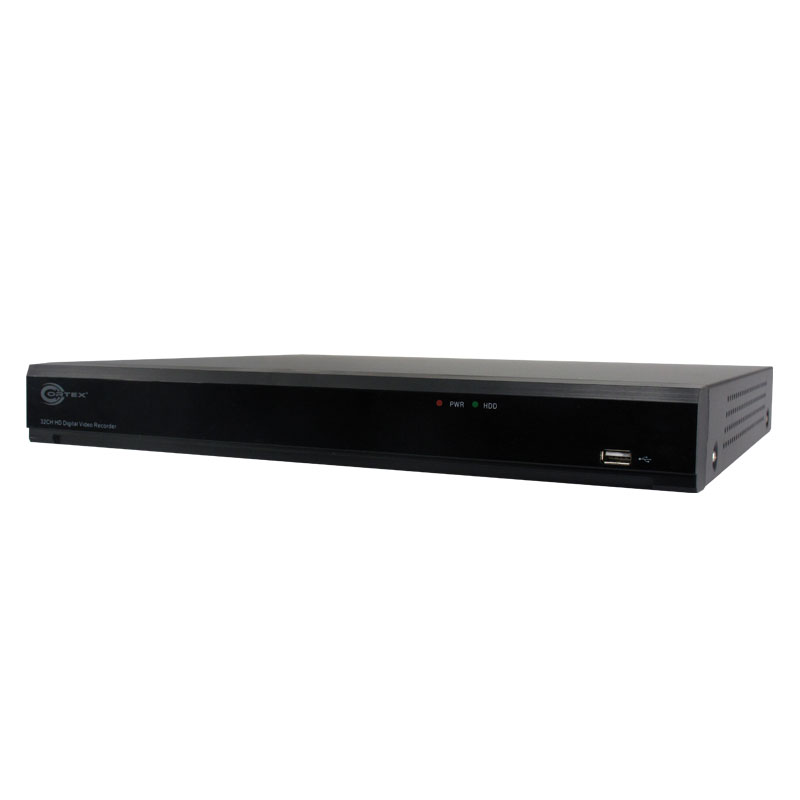

Main Features

• 32 BNC in Plus IP
• Linux (embedded) Operating System
• Continuous / Manual / Motion detect recording mode
• 4 SATA HDD, up to 32TB storage
• Audio 4CH inputs / 1CH output (RCA)
• • • Video System : NTSC / PAL
    • Operation System : Linux (embedded)
    • Analog video-input / output : 32CH inputs / VGA and HDMI output
    • IP Video Input : 8ch
    • Composite Video Input: up to 32ch
    • Audio input / output: 4CH inputs /1CH output (RCA))

  DISPLAY

  • • Resolution :
      • Analog : 3MP(18fps)
      • 1080P/720P/960H
      • IP : 4MP/3MP1080P/720P
    • Feature : 1 / 4 / 6 / 8 / 9 /1 0 / 13 / 14 / 16 / 17 19 / 22 / 25 / 32 / 36 / 49 / S.E.Q.

  RECORD

  • Resolution :
    • Analog :3MP/1080P/720P/960H
    • IP : 4MP/3MP1080P/720P
  • Speed :
    • Analog :3MP:8fps(each ch)
    • 1080P:PAL:15fps(each ch)
    • 720P:PAL:25fps(each ch)/
    • NTSC::30fps(each ch)
    • 960H:PAL:25fps(each ch)/ )
    • NTSC::30ps(each ch)
    • IP PAL:25fps(each ch)/NTSC:30fps (each ch)
  • IP-Recording Bandwidth (Maximum input Bandwidth) : 32Mbps
  • Maximum output Brandwidth: 128Mbps
  • Recording Mode : Continuous / Manual / Motion detect
  • Synchronous Playback : 8CH
  • Network Type : Lan - DHCP / and DDNS
  • HDD interface : 4 SATA HDD, up to 32TB
  • Multiplex Operation : live display - record - playback - backup and network
  • USB : 2xUSB (for mouse and backup/upgrade)
  • Sensor and Alarm I/Q : 8CH inputs /1CH output
  • PTZ Control :yes (RS485)
  • Mobil Surveillance : Support IOS on iPhone and Android operation system
  • VGA / HDMI :1024*768,1280*1024, 1440*900, 1280*720,1920*1080 ,1680*1050,1600*1200,1920*1200,2560*1440 ,3840*2160
  • Power Supply :DC 12V/5A
  • Dimension ( W x D x H ) :
    • 378 x 340 x 50mm
    • 14.8 x 13.3 x 2 inches
  • Working Temperature : -10°C~+55°C
  • Working Humidity : 10%~90%
