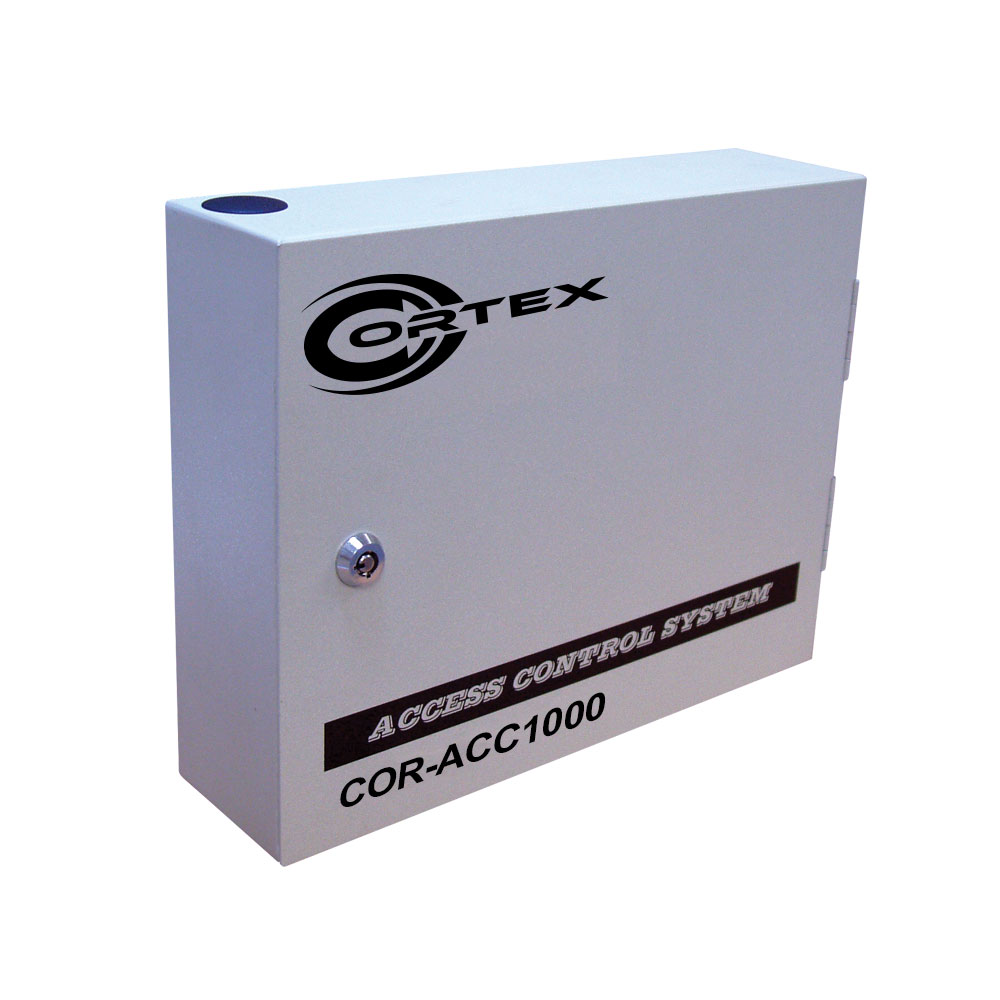

12 Multi-Door Network Control Panel
Original price was: $833.00.$800.00Current price is: $800.00.
The 12 Multi-Door Network Control Panel is a sophisticated, compact wall-mounted IP-addressable door controller with a metal cabinet and a lockable door. It includes an on-board network interface and can support up to 16 doors using proximity card or bio-metric readers.
The 12 Multi-Door Network Control Panel can be linked to up to 254 other door controllers (other COR-ACC1000 models) to provide support for large and expanding installations. A wiring diagram is attached to the inside of the door and two keys are provided for security. A UPS port and function supports a rechargeable battery (not included) so the controller can be configured to continue working in the event of power failure.
The 12 Multi-Door Network Control Panel is a sophisticated, compact wall-mounted IP-addressable door controller with a metal cabinet and a lockable door. It includes an on-board network interface and can support up to 16 doors using proximity card or bio-metric readers.
The 12 Multi-Door Network Control Panel can be linked to up to 254 other door controllers (other COR-ACC1000 models) to provide support for large and expanding installations. A wiring diagram is attached to the inside of the door and two keys are provided for security. A UPS port and function supports a rechargeable battery (not included) so the controller can be configured to continue working in the event of power failure.
Expansion Board Available
Add more with The 12 Multi-Door Network Control Panel expansion board and control up to 8 more doors.
- Control up to 12 doors (up to 20 by adding an COR-1010 expansion board)
- Compact design
- On-board network interface
- Built-in UPS function w/rechargeable battery support
- Supports 15,000 users
- Programmable card expiration supported
- 11,000 event memory
- Serial interface: RS485, 9600 baud, N, 8, 13
- 3 connections, 2 for readers, 1 for PC
- Anti-pass back supported with COR-ACC900/950/995
- Auto diagnostic: No user intervention necessary
- Dynamic door assignment supported
- Emergency door release supported
- 2 Wiegand readers supported
- Scheduled door release supported
- Anti-pass back supported with COR-ACC900/950/995
- Auto diagnostic: No user intervention necessary
- Dynamic door assignment supported
- Emergency door release supported
- 2 Wiegand readers supported
- Scheduled door release supported
- Scheduled door arming supported
- 63 Time Zones
- 255 door groups
- 120 programmable holidays
- Request to exit supported
- Relay inputs: 4 (expandable to 16), 3A
- Relay outputs: 4 (expandable to 16), 3A
- Voltage: 9-24VDC variable auto detection
- Power: 2.5 watts
- Temperature/humidity: -10 C
- 50°C (14°F - 122°F) @ 0-90% non-condensing
- Dimensions: 180mm x 231mm x 62mm (7.09" x 9.09" x 2.44")
- Optional I/O expansion board available for 8 more door in/door out devices (COR-1010)
- chrome-extension://efaidnbmnnnibpcajpcglclefindmkaj/https://www.cctvcore.com/spec-pdf/security-access-control/control-panels-ss/ACC1000.pdf
